Product Description:

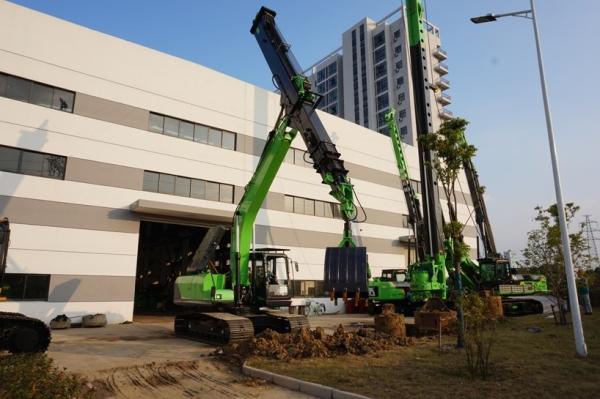

The telescopic arm is a device that can be mounted on an excavator for various
operations. It is composed of a fixed body and a mobile body. The mobile body can be extended and retracted by using a
telescopic cylinder to reach larger radius working distances and
the height for machine loading.
By using the telescopic arm, operators can benefit from its
powerful flexibility. They are able to extend and retract the
machine arm as needed in order to reach into tight spaces, such as
excavations that need precision accuracy and smaller turning
radius.
In addition, the telescopic arm can be manufactured to order,
providing more flexibility for operators in their specific
applications, including high requirements for adaptability.
Features:
- Product Name: Clamshell Telescopic Arm
- Max. Operating radius: 7950mm
- Overall Transport Length: 6908mm
- Recommended excavator capacity: ≥15t
- Max. Digging Depth: 15200mm
- Min. Operating Radius: 3980mm
Technical Parameters:
| Attribute | Value |
|---|
| Overall Transport Length | 6908mm |
| Max. Digging Radius(Reach Max. Digging Depth) | 4670mm |
| Max. Operating radius | 7950mm |
| Max. Hoisting Height | 2870mm |
| Max. Digging Depth(Reach Max. Vertical Digging Radius) | 11825mm |
| System | Hydraulic Cylinder&Wire Rope |
| Bucket Capacity | 0.3m³ |
| Min. Operating Radius | 3980mm |
| Max.Vertical Digging Radius | 6430mm |
| Max. Digging Depth | 15200mm |
Applications:
The Clamshell Telescopic Arm, branded as Apie and model number KM150, is made in China, with a minimum order quantity of 1set, and packaged in wooden boxes. Delivery time is 20 days and payment terms are T/T. It features a max. digging depth (reach max. vertical digging radius) of 11825mm, is suitable for excavator capacity of ≥15t, has an overall transport length of 6908mm, a system of hydraulic cylinder&wire rope, and a max. hoisting height of 2870mm.
Customization:
API&E's Expandable Clamshell Telescopic Arm, Model KM150, is a
high-end product from China with a minimum order quantity of 1 set.
It comes with wooden packaging and delivery within 20 days upon
payment via T/T. It has a maximum hoisting height of 2870mm and a
maximum digging depth of 15200mm. Its weight is 3.6t and the system
used is a combination of hydraulic cylinder and wire rope. The
bucket capacity of this product is 0.3m³.
Packing and Shipping:
The Clamshell Telescopic Arm should be packaged and shipped in a
way that prevents damage and scratches during transit. It should be
enclosed in a well-padded box or package with plenty of cushioning
material around it. A sturdy outer box should also be used to
protect the inner packaging from external impacts.
When shipping, the Clamshell Telescopic Arm should be sent by a
reputable carrier, such as FedEx or UPS. The package should be
clearly labeled with the destination, contact information, and any
special instructions. It should also be insured for the full value
of the product.
For heavier items, proper palletizing and strapping should be used
to secure the package during transit. If the package has to be
moved frequently, it should be sealed with plastic wrap or secured
with shrink wrap.
1: What's your service ?
We can offer professional technical support and good after-sale
service to you.
Modification methods will be different according to different
models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and
hydraulic joints and others.
Before modifying, you need to confirm technical specification.
2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
3: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and
medium-sized enterprise, which is specialized in the rotary
drilling rig and obtains more than 40 pile driving products patent.
APIE core team is instituted by the senior researchers.
