Product Description:
Product Description: Telescopic Arm

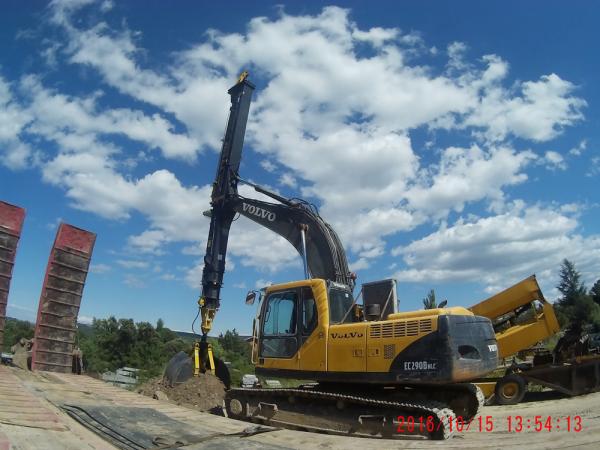

The telescopic arm is a device designed to be installed on an
excavator. It consists of two parts; the body that is fixed in
place and the mobile body. The extendable and retractable feature
it provides is achieved through the telesopic acylinder, providing
a larger excavation radius and a more reasonable loading height.
Features:
- Product Name: Clamshell Telescopic Arm
- Max. Operating Height: 9475mm
- Max.Vertical Digging Radius: 6430mm
- Max. Digging Depth (Reach Max. Vertical Digging Radius): 11825mm
- Recommended excavator capacity: ≥15t
- System: Hydraulic Cylinder & Wire Rope
- Features: Extendable Clamshell Arm, Expandable Clamshell Arm,
Expandable Clamshell Arm, Telescopic Arm
Technical Parameters:
| Parameter | Value |
|---|
| Weight of Bucket | 520Kg |
| Max.Vertical Digging Radius | 6430mm |
| Max. Operating Height | 9475mm |
| Max. Operating radius | 7950mm |
| Overall Transport Length | 6908mm |
| Max. Digging Depth(Reach Max. Vertical Digging Radius) | 11825mm |
| Bucket Capacity | 0.3m³ |
| Min. Operating Radius | 3980mm |
| Weight | 3.6t |
| Max. Digging Depth | 15200mm |
Applications:
APIE KM150 Clamshell Telescopic Arm is an expandable clamshell arm
made in China with a minimum order quantity of 1set. It comes with
wooden packaging and delivery time of 20 days. Payment terms are
T/T. This clamshell telescopic arm has a maximum hoisting height of
2870mm, a maximum digging depth of 15200mm, a maximum digging depth
of 11825mm when reaching the maximum vertical digging radius, and a
maximum digging radius of 4670mm when reaching the maximum digging
depth. The weight of the bucket is 520Kg.
Customization:
API Extendable Clamshell Arm – KM150
Brand Name: APIE
Model Number: KM150
Place of Origin: China
Minimum Order Quantity: 1set
Packaging Details: Wooden
Delivery Time: 20days
Payment Terms: T/T
Recommended excavator capacity: ≥15t
Max. Digging Radius(Reach Max. Digging Depth): 4670mm
System: Hydraulic Cylinder&Wire Rope
Weight of Bucket: 520Kg
Max.Vertical Digging Radius: 6430mm
Features of APIE Extendable Clamshell Arm – KM150
- Extendable Clamshell Arm
- High-efficiency
- Easy installation and operation
- Robust and reliable
- Smooth and precise movements
Packing and Shipping:
The Clamshell Telescopic Arm is shipped via ground transportation
with the following packaging and shipping requirements:
- The product is securely packaged in a corrugated box with adequate
cushioning material.
- The box is labeled with the product name and shipping information.
- The box is sealed with packing tape.
- The box is then placed in a shipping container that is appropriate
for the size of the box.
- The shipping container is sealed with packing tape.
- The shipping container is labeled with the product name and
shipping information.
FAQ:
1: What's your service ?
We can offer professional technical support and good after-sale
service to you.
Modification methods will be different according to different
models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and
hydraulic joints and others.
Before modifying, you need to confirm technical specification.
2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
3: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and
medium-sized enterprise, which is specialized in the rotary
drilling rig and obtains more than 40 pile driving products patent.
APIE core team is instituted by the senior researchers.
