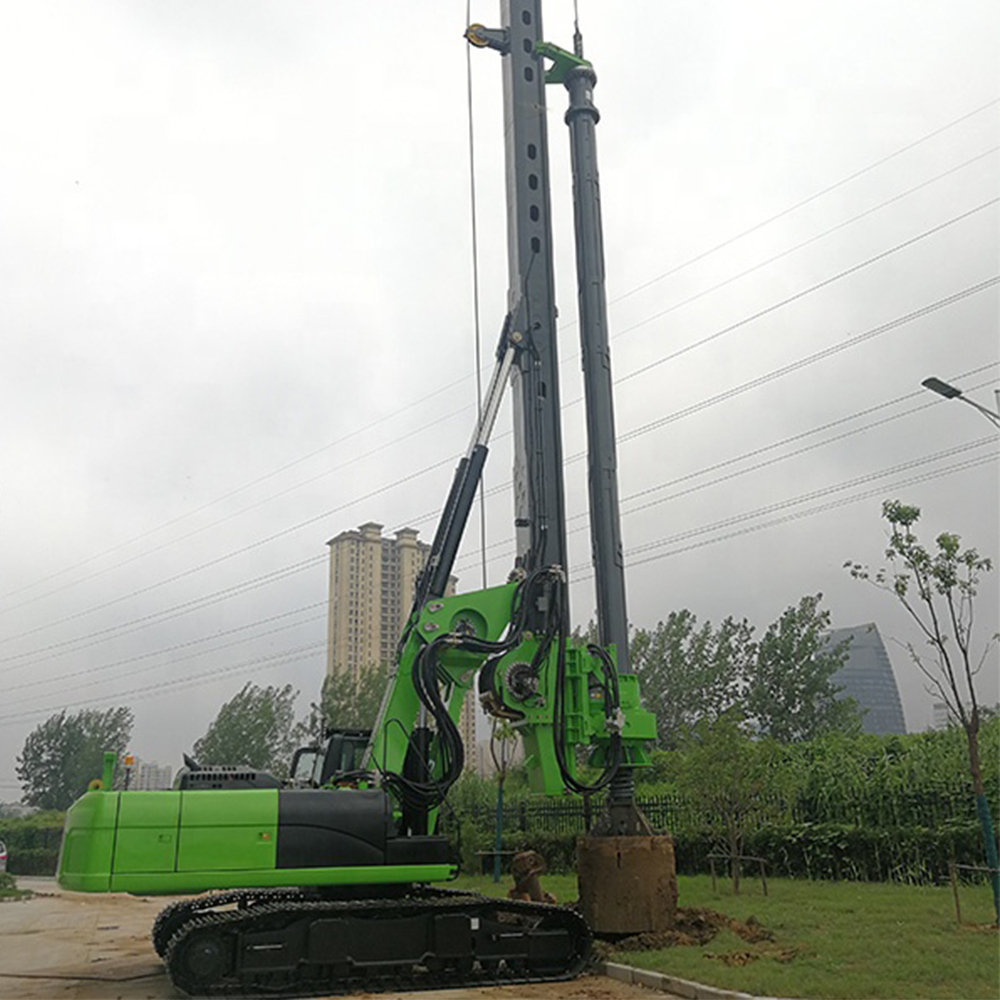

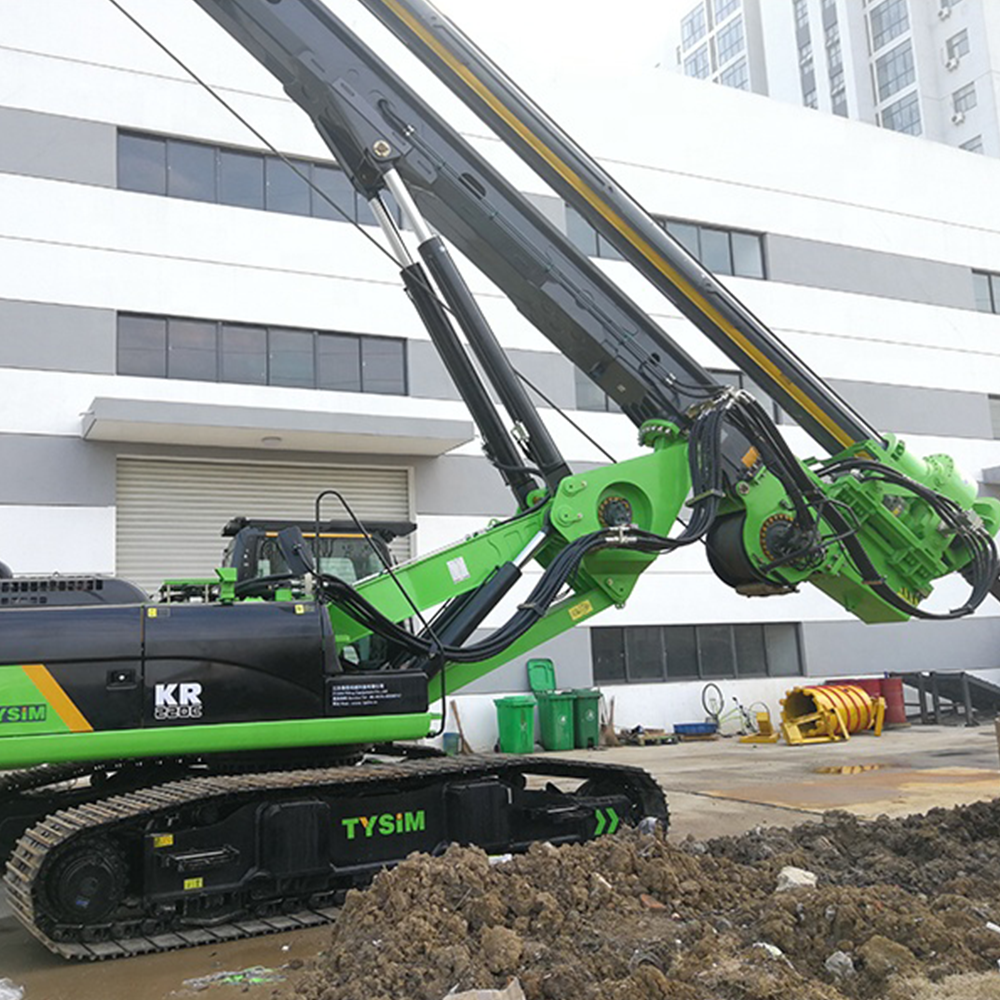

High-inquiry Products KR165C 7~28rpm Working Speed Helical Mini
Excavator Pile Driver Machine
Feature
1. USA powerful Cummins engine
2. GB certification and EU EN 16228 standard certification
3. New and upgraded Caterpillar chassis
4. The multi-stage vibration reduction design of the power head
results in better vibration reduction
5. Strong rotary braking performance
6. New generation electronic control platform
| Performance Parameter | Unit | Value |
| Max. torque | kN.m | 165 |
| Max. drilling diameter | mm | 1500 |
| Max. drilling depth | m | 58/46 |
| Working speed | rpm | 7~28 |
| Max. cylinder pressure | kN | 155 |
| Max. hoist capacity | kN | 160 |
| Main winch pull force | kN | 160 |
| Main winch speed | m/min | 80 |
| Auxiliary winch pull force | kN | 60 |
| Auxiliary winch speed | m/min | 70 |
| Max. cylinder stroke | mm | 4200 |
| Mast side raking | ° | ±3 |
| Mast raking forward | ° | 5 |
| System pressure | mpa | 35 |
| Pilot pressure | mpa | 4 |
| Max. walking speed | km/h | 3 |
| Max. pull force | kN | 240 |
| Operating height | mm | 19152 |
| Operating width | mm | 4100 |
| Transport height | mm | 3321 |
| Transport width | mm | 3100 |
| Transport length | mm | 13230 |
| Total weight | t | 49 |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working
hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: Why should you buy from us not from other suppliers?
TYSIM is the only one focused on the development civil for small
and medium-sized enterprise, which is specialized in the rotary
drilling rig and obtains more than 40 pile driving products patent.
TYSIM core team is instituted by the senior researchers.
3: What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language:Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
4: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
