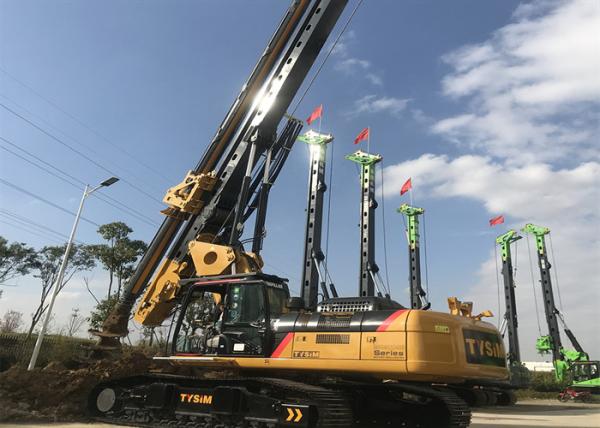

High Digging Power KR165C Large Construction Works Hydraulic Pile
Crawler Soil Drilling Rig
Our Feature
Engine
USA powerful Cummins engine, to maximize its working performance.
Certification
Our products have passed GB certification and EU EN16228 standard
certification, better dynamic and static stability design to ensure
construction safety.
Chassis
New and upgraded caterpillar chassis with high quality to ensure
the best performance of the whole machine.
Power head
The power head is designed with an extra option for drilling rock
to recuce the operation intensity of the operator
| Performance Parameter | Unit | Value |
| Max. torque | kN.m | 165 |
| Max. drilling diameter | mm | 1500 |
| Max. drilling depth | m | 58/46 |
| Working speed | rpm | 7~28 |
| Max. cylinder pressure | kN | 155 |
| Max. hoist capacity | kN | 160 |
| Main winch pull force | kN | 160 |
| Main winch speed | m/min | 80 |
| Auxiliary winch pull force | kN | 60 |
| Auxiliary winch speed | m/min | 70 |
| Max. cylinder stroke | mm | 4200 |
| Mast side raking | ° | ±3 |
| Mast raking forward | ° | 5 |
| System pressure | mpa | 35 |
| Pilot pressure | mpa | 4 |
| Max. walking speed | km/h | 3 |
| Max. pull force | kN | 240 |
| Operating height | mm | 19152 |
| Operating width | mm | 4100 |
| Transport height | mm | 3321 |
| Transport width | mm | 3100 |
| Transport length | mm | 13230 |
| Total weight | t | 49 |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working
hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: Why should you buy from us not from other suppliers?
TYSIM is the only one focused on the development civil for small
and medium-sized enterprise, which is specialized in the rotary
drilling rig and obtains more than 40 pile driving products patent.
TYSIM core team is instituted by the senior researchers.
3: What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language:Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
4: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
