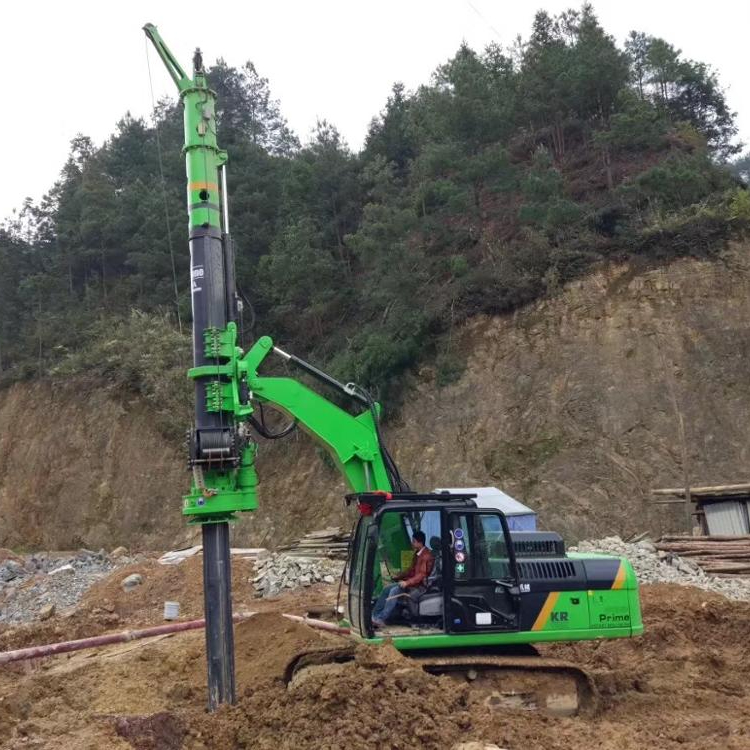

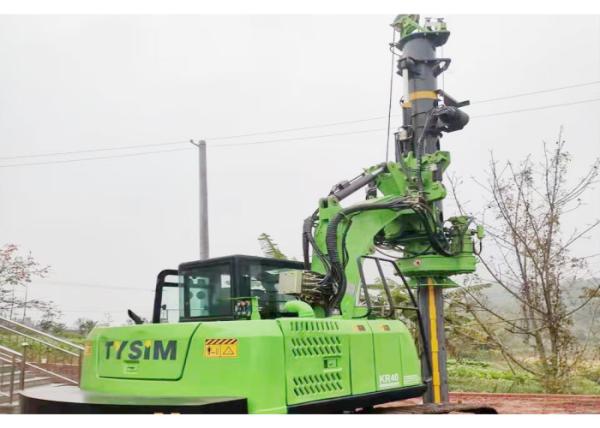

    40kNm 28m Rotary Pile Machine Hydraulic Drilling Rig Machine 30m/Min

    Ask Lasest Price
    Brand Name : APIE
    Model Number : KR40
    Certification : CE and ISO9001
    Price : $192000+
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2 sets/month
    Delivery Time : 20-25 days
    • Product Details
    • Company Profile

    40kNm 28m Rotary Pile Machine Hydraulic Drilling Rig Machine 30m/Min

    Low Price Reliable Performance Hydraulic Used Rotary Pile Drilling Rig Machine


    Product description

    1. Erialized products have different models, different capabilities, and multiple choices to meet the needs of different customers.
    2. Power head can be mechanically / hydraulically shifted. Suitable for various drilling methods such as down-the-hole hammer, heel pipe, full ca sing and alloy rotation
    3. The drilling rig is equipped with a hydraulic clamping shackle device and an automatic shackle, which reduces auxiliary time and labor intensity.
    4. The crawler chassis equipped with a turning device on the car makes the whole machine move and find holes more conveniently and quickly.

    Technical Specification

    Rotary Drilling Rig ModelKR40A
    Max. torque40 kN.m
    Max. drilling diameter1200 mm
    Max. drilling depth10 m
    Max. cylinder thrust70 kN
    Max. cylinder trip600 mm
    Main winch pull force45 kN
    Main winch speed30 m/min
    Mast inclination(Lateral)±6°
    Mast inclination(Forward)-30°~+60°
    Working speed7-30rpm
    Min. radius of gyration2750mm
    Max. pilot pressure28.5Mpa
    Operating height7420mm
    Operating width2200mm
    Transport height2625mm
    Transport width2200mm
    Transport length8930mm
    Transport weight12 tons


    FAQ

    1: What is the Warranty of the Rotary Drilling Rig?

    The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
    Please contact with us for detailed Warranty Regulation.


    2: Why should you buy from us not from other suppliers?
    APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.


    3: What's your service ?

    We can offer professional technical support and good after-sale service to you.
    Modification methods will be different according to different models and configurations of your owned excavators.
    Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
    Before modifying, you need to confirm technical specification.
