Highly Efficient KR90M Hydraulic CFA Multifunctional Highway
Crawler Auger Pile Driver
Product Description:
Introducing the KR90M Hydraulic CFA Multifunctional Highway Crawler
Auger Pile Driver, designed for exceptional performance and
efficiency. This advanced pile driver incorporates innovative
features to ensure optimal operation and productivity in various
construction projects.
Key Features:
1. Powerful Cummins Engine: Equipped with a high-performance
Cummins engine from the USA, this pile driver delivers reliable
power and efficiency. The engine's robust performance ensures
smooth and consistent operation, enhancing productivity on the
construction site.
2. GB and EU Certifications: The KR90M Hydraulic CFA Pile Driver
holds GB certification and EU EN 16228 standard certification.
These certifications validate its compliance with safety and
performance standards, providing confidence in its reliability and
adherence to industry regulations.
3. Upgraded Caterpillar Chassis: The pile driver features a new and
upgraded Caterpillar chassis, enhancing stability and
maneuverability on various terrains. The improved chassis design
ensures smooth navigation and precise positioning, enabling
efficient pile driving operations.
4. Multi-Stage Vibration Reduction: The power head of the pile
driver incorporates a multi-stage vibration reduction design. This
innovative feature effectively minimizes vibrations during
operation, resulting in improved work efficiency and reduced impact
on surrounding structures.
5. Strong Rotary Braking Performance: The KR90M boasts strong
rotary braking performance, ensuring precise control during pile
driving operations. The reliable braking system enhances safety and
accuracy, allowing for precise placement of piles.
6. New Generation Electronic Control Platform: This pile driver is
equipped with a new generation electronic control platform. The
advanced control system provides intuitive operation and precise
parameter adjustments, optimizing performance and enhancing user
experience.
Choose the KR90M Hydraulic CFA Multifunctional Highway Crawler
Auger Pile Driver for its high operating efficiency and versatile
capabilities. With its powerful Cummins engine, GB and EU
certifications, upgraded Caterpillar chassis, multi-stage vibration
reduction, strong rotary braking performance, and new generation
electronic control platform, this pile driver offers exceptional
reliability, productivity, and control. Contact us today to learn
more about how the KR90M can meet your specific pile driving
requirements.
Technical Specification
| Technical specification of KR90M rotary drilling rig(CFA
&rotary drilling rig) |
| Rotary Drilling Rig Technical Parameters |
| Max Torque | 90 kN.m |
| Max Drilling dia | 1/1.2 m |
| Max Drilling Depth | 28 m |
| CFA Technical Parameters |
| Max Drilling dia | 600 mm |
| Max Drilling Depth | 12 m |
| CFA/Rotary Drilling Rig Technical Parameters |
| Mian winch line diameter | 20 mm |
| Main winch line pull | 90 kN |
| Auxiliary winch line diameter | 14 mm |
| Auxiliary winch line pull | 35 kN |
| Forward inclination | 5° |
| Lateral inclination | ±3 ° |
| Chassis type | CAT318D |
| Engine type | CAT C4.4 |
| Engine power rating/rotate speed | 93/200 kW/rpm |
| Max. pressure | 35 MPa |
| Max. flow | 272L/min |
| pilot pressure | 3.9 MPa |
| Track shoe width | 600 mm |
| Operating height | 16000 mm |
| Transport length | 13650 mm |
| Transport width | 2600 mm |
| Transport height | 3570 mm |
| Traction force | 156 kN |

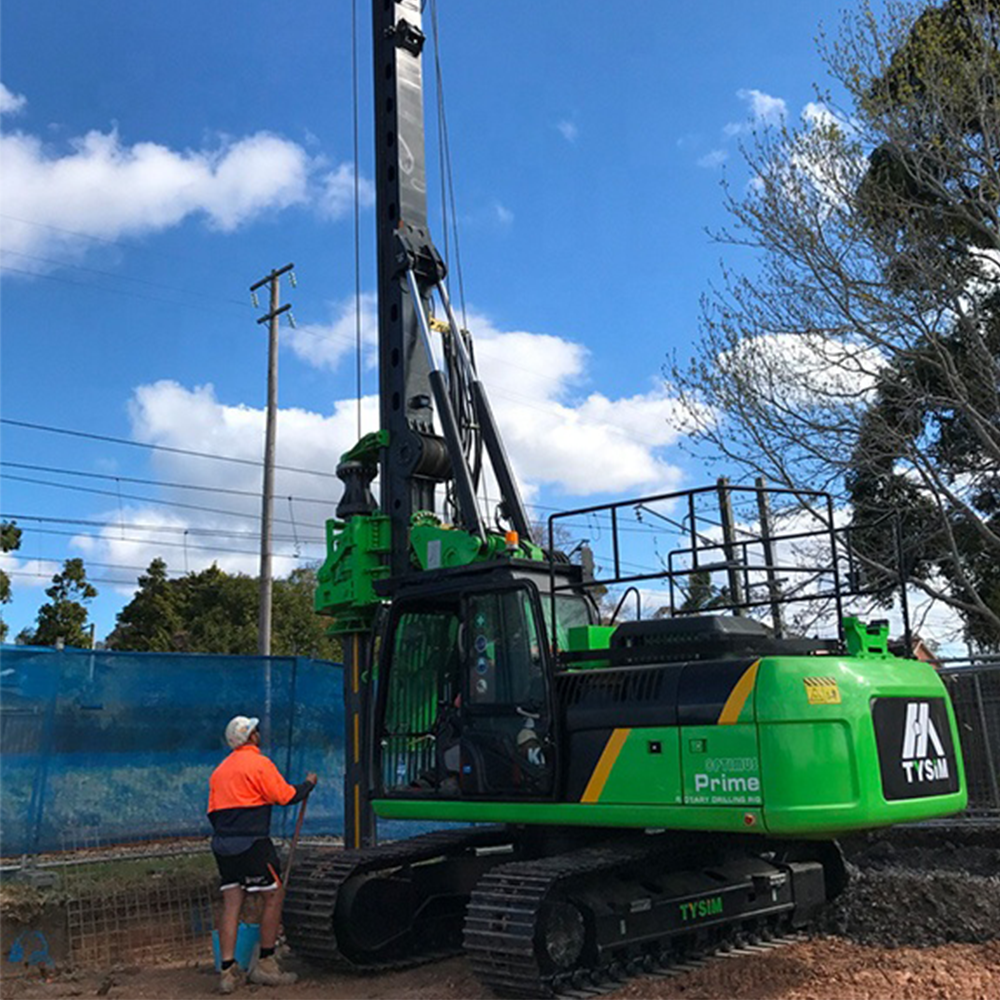

Product details
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working
hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale
service to you.
Modification methods will be different according to different
models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and
hydraulic joints and others.
Before modifying, you need to confirm technical specification.
3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
4: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and
medium-sized enterprise, which is specialized in the rotary
drilling rig and obtains more than 40 pile driving products patent.
APIE core team is instituted by the senior researchers.
