Brand Name : | TYSIM |
Model Number : | KR60A |
Certification : | CE and ISO9001 |
Price : | $190000+ |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 3 sets/month |
Delivery Time : | 20-25 days |

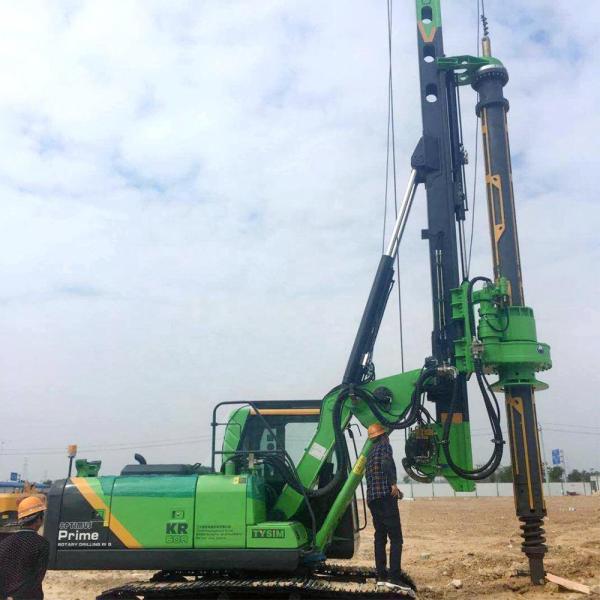

APIE Construction projects KR60A Bore Pile Machine Rotary Hydraulic drilling Rig
About products
1. With the dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary stability and transport convenience.
2. With the hydraulic pressure system adopted threshold power control and negative flow control,the system acquired high efficiency and higher energy conservation
3. GB certification and EU EN16228 standard certification.
4. Optimized structural of single-cylinder luffing mechanism.
5. Optimized designing of two-stage mast.
Performance Parameter | Unit | Value |
Max. torque | kN.m | 60 |
Max. drilling diameter | mm | 1200 |
Max. drilling depth | m | 20 |
Working speed | rpm | 8~30 |
Max. cylinder pressure | kN | 60 |
Max. hoist capacity | kN | 90 |
Main winch pull force | kN | 65 |
Main winch speed | m/min | 48 |
Auxiliary winch pull force | kN | 20 |
Auxiliary winch speed | m/min | 48 |
Max. cylinder stroke | mm | 2000 |
Mast side raking | ° | ±3 |
Mast raking forward | ° | 4 |
System pressure | mpa | 34.3 |
Pilot pressure | mpa | 3.9 |
Max. walking speed | km/h | 2.8 |
Max. pull force | kN | 98 |
Operating height | mm | 10600 |
Operating width | mm | 2690 |
Transport height | mm | 3250 |
Transport width | mm | 2690 |
Transport length | mm | 9500 |
Total weight | t | 20 |
![]() |
