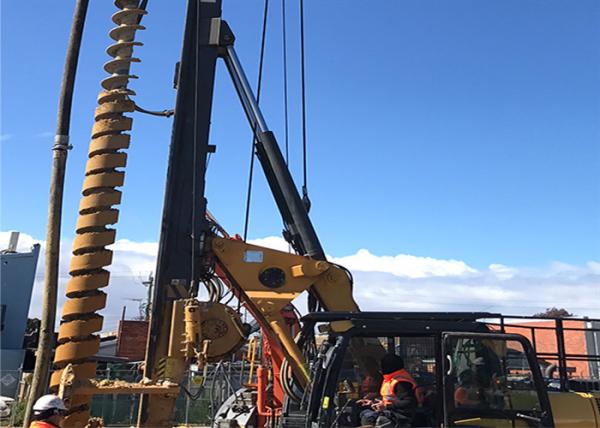

150kNm 750mm Small Multifunctional Drilling Rig Rotary Drilling
Machine 400KN
Products Description
1.Expansion chassis(double-width ). The operating width is 3600mm
and the transport width is 2600mm. The equipment has good
passability and high construction stability.
2.High traction for walking. The whole machine is flexible can meet
the requirement of 20° ramp for normal driving;
3.The whole machine is designed in accordance with EU standards,
with high construction stability;
4.Customized high-power engine with dual drive power head and large
output torque, which can meet the requirements of complex formation
construction and high construction efficiency;
5.It can realize the large drilling diameter construction through
different drilling tools and construction methods;
6.Customized low mast, lower center of gravity, improve
construction stability
Technical Specification
| Technical specification of KR150M rotary drilling rig |
| Torque | 150 kN.m |
| Max. diameter | 750 mm |
| Max. drilling depth | 17 m |
| Max. crowd pull | 400 kN |
| Auxiliary winch line pull | 60 kN |
| Auxiliary winch line speed | 79 m/min |
| Mast inclination(lateral) | ±5° |
| Mast inclination(forward) | 5° |
| Mast inclination(backward) | 15° |
| Max. operating pressure | 34.3 MPa |
| Pilot pressure | 4 Mpa |
| Operating height | 21160 mm |
| Operating width | 4100 mm |
| Transport height | 3305 mm |
| Transport width | 3100 mm |
| Transport length | 13000 mm |
| Overall weight | 42 t |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working
hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale
service to you.
Modification methods will be different according to different
models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and
hydraulic joints and others.
Before modifying, you need to confirm technical specification.
3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
4: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and
medium-sized enterprise, which is specialized in the rotary
drilling rig and obtains more than 40 pile driving products patent.
APIE core team is instituted by the senior researchers.
