KR220M hydraulic piling working tool,rotary table drilling rig
Equipment, borehole Drill Rotary Head

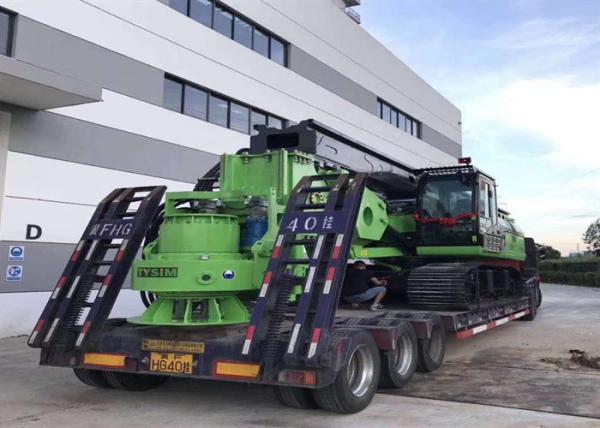

About TYSIM KR220M Rotary drilling rig
1. Fully electronic controlled rotary drilling machine.
2. Simple operation process.
3. GB certification and EU EN16228 standard certification.
4. Wide application range, high construction efficiency, stable
performance.
5. High qualtiy, lower cost
Technical Specification
| Technical specification of KR220M rotary drilling rig(CFA
&rotary drilling rig) |
| CFA construction method | Max. diameter | 800mm |
| Max. drilling depth | 20m |
| Max. Diameter | 460KN |
| Rotary drilling construction method | Max. Diameter | 1800mm |
| Max. drilling depth | 51m |
| Main winch line pull | 230KN |
| Main winch line speed | 60m/min |
| Working parameters | Max. torque | 220KN.m |
| Auxiliary winch line pull | 2400KN |
| Auxiliary winch line speed | 90m/min |
| Mast inclination(lateral) | ±3° |
| Mast inclination(forward) | 5° |
| Max. operating pressure | 34.3MPa |
| Pilot pressure | 3.9MPa |
| Operating speed | 2.8km/h |
| Operating force | 204KN |
| Operating size | Operating height | 23965mm(CFA) |
| Operating width | 4300mm |
| Transport size | Transport height | 3315mm |
| Transport width | 3000mm |
| Transport length | 15620mm |
| Total weight | Overall weight | 60t |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working
hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale
service to you.
Modification methods will be different according to different
models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and
hydraulic joints and others.
Before modifying, you need to confirm technical specification.
3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
4: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and
medium-sized enterprise, which is specialized in the rotary
drilling rig and obtains more than 40 pile driving products patent.
APIE core team is instituted by the senior researchers.
