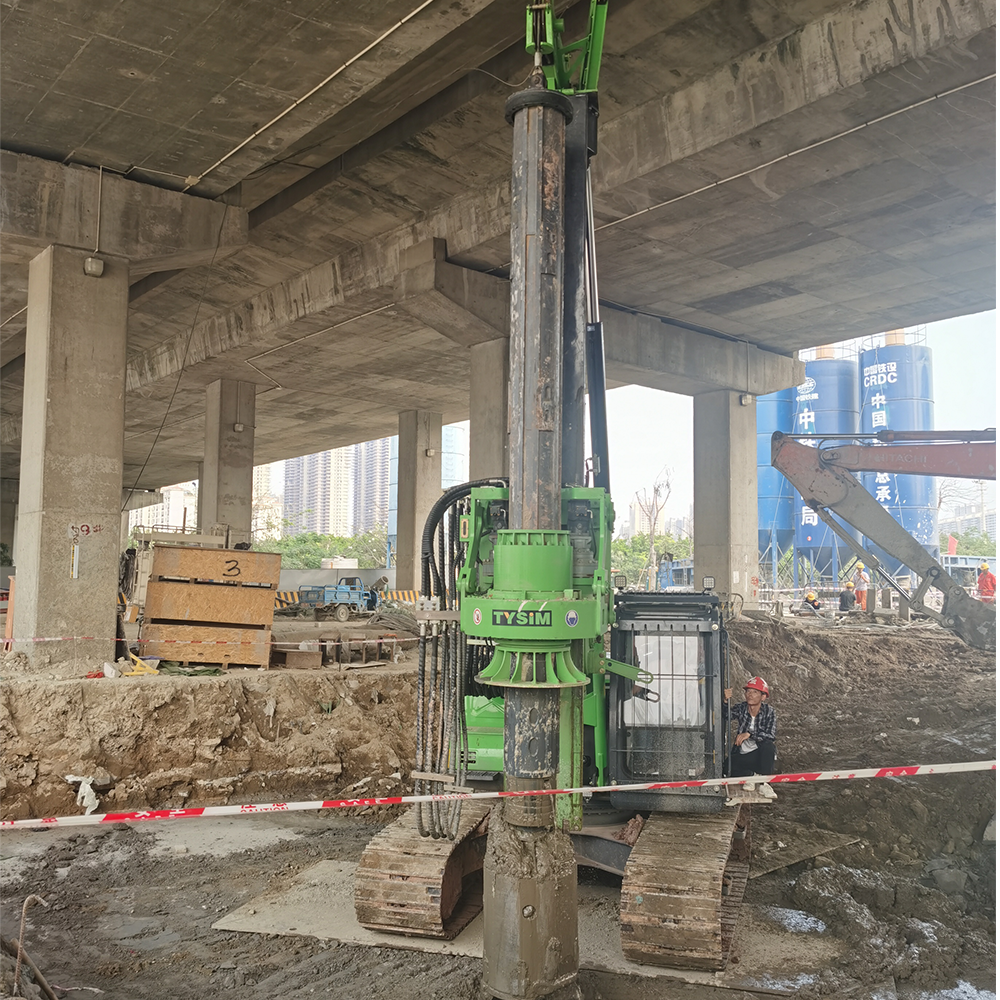

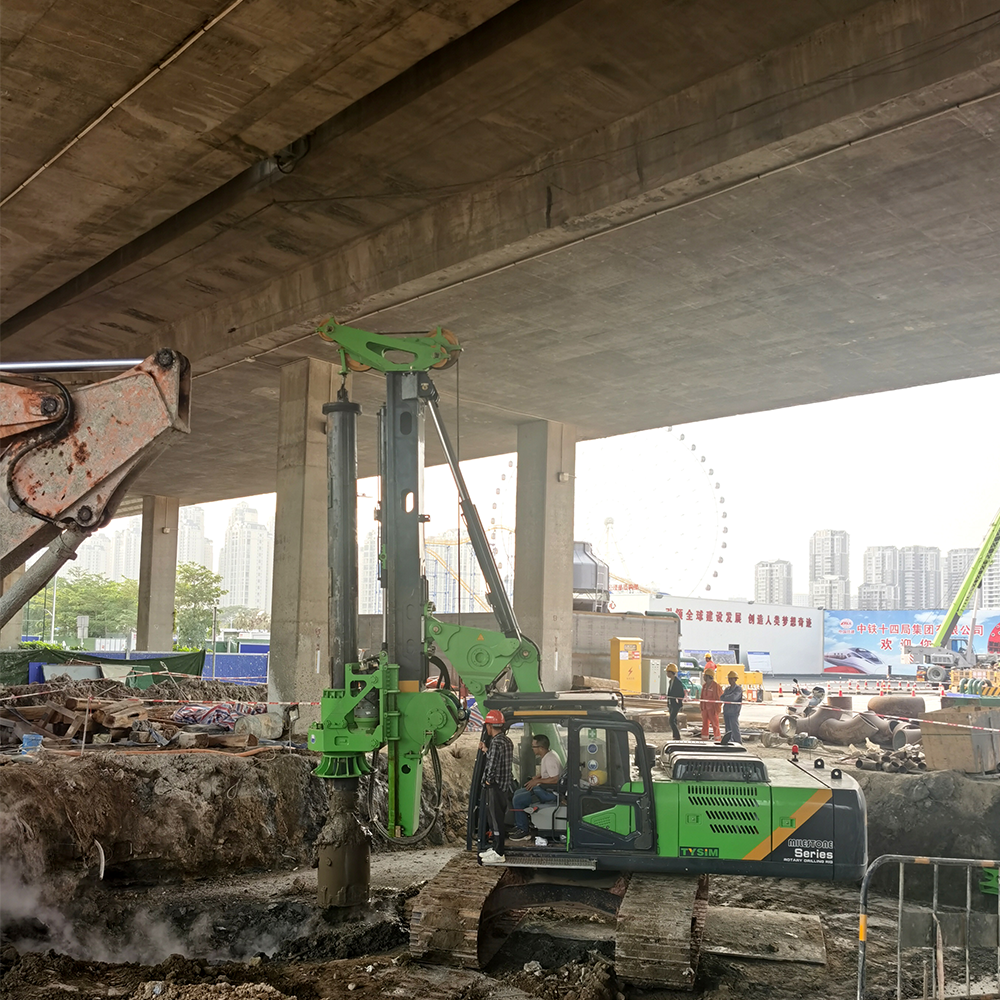

APIE Advanced Technology Max Diameter 2000Mm Driil Machine Rotary
Drilling Rig
Feature
1. Single load transportation hydraulic rotary drilling rig.
2. High-performance hydraulic system and control system.
3. GB certification and EU EN16228 standard certification.
4. Optimized structural of single-cylinder luffing mechanism.
5. Optimized designing of two-stage mast.
Technical Specification
| Performance Parameter | Unit | Value |
| Max. torque | kN.m | 320 |
| Max. drilling diameter | mm | 2000 |
| Max. drilling depth | m | 31.2 |
| Working speed | rpm | 6~26 |
| Max. cylinder pressure | kN | 220 |
| Max. hoist capacity | kN | 220 |
| Main winch pull force | kN | 230 |
| Main winch speed | m/min | 66 |
| Auxiliary winch pull force | kN | 110 |
| Auxiliary winch speed | m/min | 70 |
| Max. cylinder stroke | mm | 2000 |
| Mast side raking | ° | ±5 |
| Mast raking forward | ° | 5 |
| Mast raking backward | ° | 90 |
| System pressure | mpa | 34.3 |
| Pilot pressure | mpa | 3.9 |
| Rotating speed | rpm | 5 |
| Max. walking speed | km/h | 1.5 |
| Max. pull force | kN | 560 |
| Operating height | mm | 11087 |
| Operating width | mm | 4300 |
| Transport height | mm | 3590 |
| Transport width | mm | 3000 |
| Transport length | mm | 10651 |
| Total weight | t | 76 |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working
hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale
service to you.
Modification methods will be different according to different
models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and
hydraulic joints and others.
Before modifying, you need to confirm technical specification.
3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
4: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and
medium-sized enterprise, which is specialized in the rotary
drilling rig and obtains more than 40 pile driving products patent.
APIE core team is instituted by the senior researchers.
