Highly Efficient Hydraulic Piling Rotary Drilling Rig for Sale by
APIE Engineering Construction Machinery
Product Description:

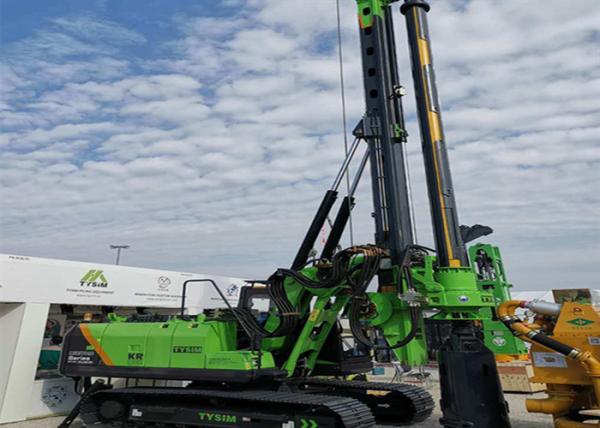

APIE Engineering Construction Machinery is proud to present our
Hydraulic Piling Rotary Drilling Rig, designed for exceptional
performance in various construction projects. With its high digging
power and advanced features, this rig delivers reliable and
efficient results.
Key Features:
1. Powerful Cummins Engine: Our drilling rig is equipped with a
powerful Cummins engine sourced from the USA. This ensures optimal
performance, reliability, and durability, even in demanding work
conditions.
2. Certified Quality: It is important to note that our rig has
obtained GB certification and EU EN 16228 standard certification.
These certifications validate the product's compliance with
industry standards for safety and performance.
3. Upgraded Caterpillar Chassis: The rig features a new and
upgraded Caterpillar chassis, providing enhanced stability and
maneuverability on the job site. This ensures smooth operation and
precise control during drilling operations.
4. Advanced Vibration Reduction Design: The power head of our
drilling rig incorporates a multi-stage vibration reduction design.
This design effectively reduces vibrations, enhancing operator
comfort and minimizing environmental impact.
5. Strong Rotary Braking Performance: Our rig is equipped with a
strong rotary braking system, ensuring precise control during
drilling operations. This feature enhances safety and accuracy,
allowing for efficient and reliable drilling results.
6. New Generation Electronic Control Platform: The drilling rig
features a new generation electronic control platform, offering
advanced functionality and intuitive operation. This platform
facilitates easy monitoring and control of drilling parameters,
improving overall efficiency.
Choose our Hydraulic Piling Rotary Drilling Rig for its high
digging power, certified quality, and advanced features. With its
powerful Cummins engine, upgraded chassis, and innovative design,
it is the perfect choice for construction professionals seeking
reliable and efficient drilling solutions.
| Performance Parameter | Unit | Value |
| Max. torque | kN.m | 90 |
| Max. drilling diameter | mm | 1000/1200 |
| Max. drilling depth | m | 28 |
| Working speed | rpm | 8~30 |
| Max. cylinder pressure | kN | 90 |
| Max. hoist capacity | kN | 120 |
| Main winch pull force | kN | 90 |
| Main winch speed | m/min | 75 |
| Auxiliary winch pull force | kN | 50 |
| Auxiliary winch speed | m/min | 40 |
| Max. cylinder stroke | mm | 3500 |
| Mast side raking | ° | ±3 |
| Mast raking forward | ° | 4 |
| System pressure | mpa | 35 |
| Pilot pressure | mpa | 3.9 |
| Max. walking speed | km/h | 2.8 |
| Max. pull force | kN | 156 |
| Operating height | mm | 14550 |
| Operating width | mm | 2600 |
| Transport height | mm | 3480 |
| Transport width | mm | 2600 |
| Transport length | mm | 13100 |
| Total weight | t | 28 |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working
hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
3: What's your service ?
We can offer professional technical support and good after-sale
service to you.
Modification methods will be different according to different
models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and
hydraulic joints and others.
Before modifying, you need to confirm technical specification.
