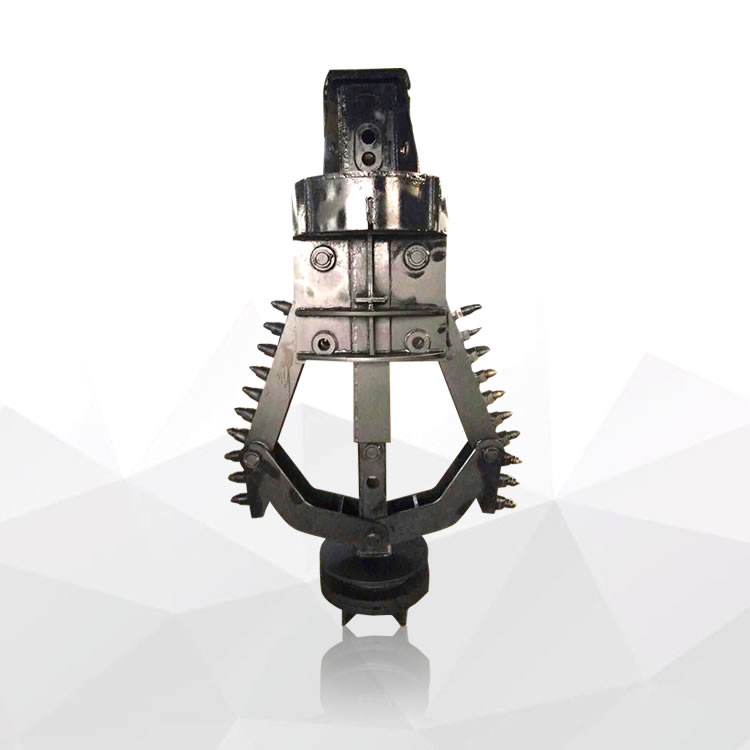

600-1200mm Adjustable Expansion Bottom Diameter belling bucket
concrete drilling tools
Product Feature
1.Adjustable cutting arms can meet the specific requirements of
different reaming diameters
2.After reaming the bore hole, convey spoil with drilling bucket or
cleaning bucket
3.Cutting arms are easy to spread and retract
4.It is easy to maintain the box-type structure
Product Description
1.Drilling buckets are mainly used for drilling water-bearing sandy
soil, sludge, clay, muddy sub clay, sandy gravel, cobble, and
weathered soft formation.
2.The bucket can be designed into cylindrical type and conical type
according to bucket diameter, type of drilling rig and soil
conditions.
3.The welding angle of bucket teeth can be designed according to
formation conditions so that the drilling buckets can keep high
efficiency of soil cutting amount in any formation conditions.
4.The bottom cover is made of high-strength Mn plate, and the
cutting edge includes single-layer type and double-layer type.
5.The soil inlet also includes single-bottom type and double-bottom
type.
| Technical Specification of belling bucket |
| Model. | Tool HIT. | Teeth No. | Weight |
| (mm) | (mm) | | (kg) |
| 600-1200 | 3050 | 28 | 1190 |
| 800-1600 | 3100 | 28 | 1310 |
| 900-1800 | 3050 | 28 | 1425 |
| 1000-2000 | 3050 | 30 | 1650 |
| 1100-2200 | 3050 | 30 | 1880 |
| 1200-2400 | 3050 | 30 | 2350 |
| 1500-3000 | 4000 | 32 | 3600 |
Product Details
FAQ
1: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic
Arm, drilling tools
3: What's your service ?
We can offer professional technical support and good after-sale
service to you.
Modification methods will be different according to different
models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and
hydraulic joints and others.
Before modifying, you need to confirm technical specification.
