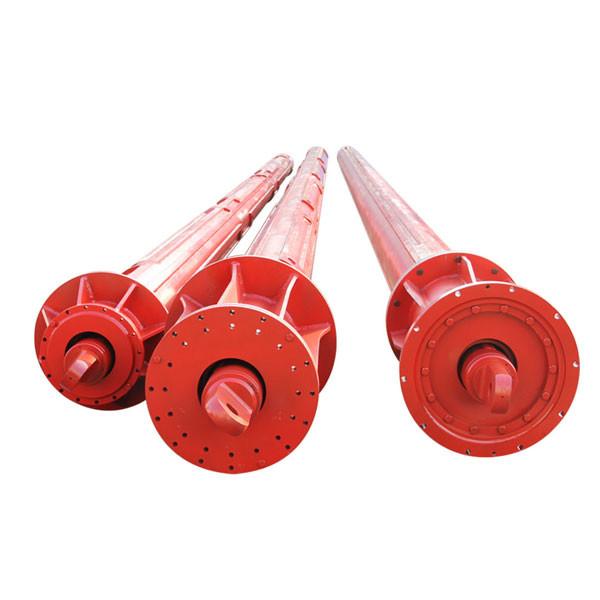

377mm Drill Tools Interlocking Kelly Bar Bored Piling Foundation Parts

Ask Lasest Price
Brand Name :	APIE
Model Number :	AP273-3
Certification :	CE
Price :	$12000+
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000 Meter/Meters per Week
Delivery Time :	5-8days

Add to Cart

Product Details
Company Profile

377mm Drill Tools Interlocking Kelly Bar Bored Piling Foundation Parts

bored piling foundation parts drill tools drilling bucket 377mm Interlocking Kelly Bar

Products Feature

1. The maximum torque and pressure applied should not exceed the maximum allowable value of the kelly bar；
2. The main winch wire rope, pipe and power head drive sleeve are located at the same axis；
3. The mast of the drill pipe is kept vertical；
4. The drill head should be aligned with the center of the hole；
5. Open it regularly for inspection and repair in time when wear is found；
6. Regularly check the welding seam；
7. Good operating habits；
8. Look at the appearance, listen to the sound of pumping and pulling, feel the friction and the sense of impact of each section.

Products description

1.Kelly bars are key components in the execution of boreholes with hydraulic rotary drilling rigs. They transfer the torque of the rotary drive and the crowd pressure of the crowd system concurrently to the drilling tool. A Kelly bar consists of 2 – 5 telescopic tubular sections with a system of drive keys and lock recesses, welded onto their outer surfaces.

2.We have innovatively added a reinforcement ring structure for each terminal joint, which is heat-treated to effectively reduce the risk of cracking the pipe during drilling.

3.Interlocking kelly bars are indeed provided with drive ribs which are welded with lock devices in order to transfer the maximum torque to each scope. To make sure to transfer the maximum torque over the full extended length.

Technical Specification of Interlocking Kelly Bar
Number	Out Diameter (mm)	Interlock	Interlock	Single Length(m)	Drilling Depth(m)
1	273	3	*	9~12	24~33
2	299	3	4	9~12	24~44
3	325	3	4	9~12	24~44
4	355	3	4	9~14	24~65
5	368	3	4	9~14	24~65
6	377	3	4	9~14	24~65
7	394	3	4	9~15	24~70
8	406	3	4	9~15	24~70
9	419	3	4	9~15.5	24~72.5
10	440/445	3	4	9~15.5	24~72.5
11	470	3	4	9~16.5	24~93
12	508	3	4	9~18	24~102
13	530	*	4	9~19	24~108
Remark 1Max Hole Depth = Pitch Number * Single Number - Pitch Number (m)
2Any other drill can be actual site measured, customized produced. Torque is customized according to customer's requirements.

FAQ

Q: Are you trading company or manufacturer?

A: We are factory.

Q: How long is your delivery time?

A: Usually it is 5~10 days if the goods are in stock. Or it is 45 days if the goods are not in stock, it is according to quantity.

Q: What ‘s your terms of payment?

A: Payment<=100USD, 100% in advance. Payment>=1000USD, 50% T/T in advance balance before shipment. irrevocable LC at sight.
