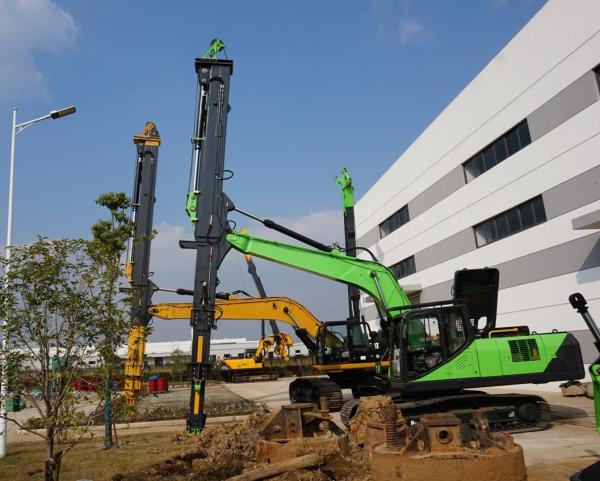

    KM Series Clamshell Telescopic Arm Excavator Long Boom Piling Parts

    Ask Lasest Price
    Brand Name : TYSIM
    Model Number : KM260
    Certification : CE and ISO9001
    Price : $48000+
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10 sets/month
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    KM Series Clamshell Telescopic Arm Excavator Long Boom Piling Parts

    Excavator parts piling parts KM Series Clamshell Telescopic Arm long boom excavator arm


    Product Feature

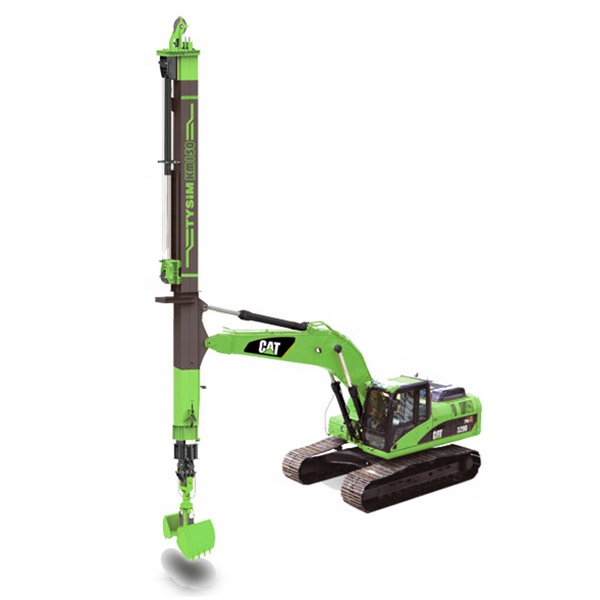

    1.The Telescopic Excavator Boom is the ideal vertical stereo construction tool. It is convenient for use in small spaces. Some of the benefits of this boom include simple maintenance, low cost and high yield.

    2.The clamshell is a bucket with two hinged jaws carried by a crane suspended from the boom by two lines: one raises and lowers the bucket, and the other pulls the jaws together against gravity for digging action. It is used chiefly for deep, narrow excavations.


    Technical Specification

    Technical Specification of KM Telescopic Excavator Boom
    TypeKM150KM220KM260
    SystemHydraulic cylinder&Wire ropeHydraulic cylinder &Wire ropeHydraulic cylinder&Wire rope
    Weight3.6t4.6t5.6t
    Bucket Capacity0.3m³0.6m³1.2m³
    Max. Digging Depth15200mm22490mm27180mm
    Max. Digging Radius(Reach Max. Digging Depth)4670mm5845mm6400mm
    Max.Vertical Digging Radius6430mm7445mm8530mm
    Max. Digging Depth(Reach Max. Vertical Digging Radius)11825mm19920mm22370mm
    Max. Operating radius7950mm9835mm11250mm
    Max. Hoisting Height2870mm4465mm5770mm
    Min. Operating Radius3980mm4485mm5460mm
    Max. Operating Height9475mm13580mm16675mm
    Overall Transport Length6908mm10685mm12390mm
    Weight of Bucket520Kg990Kg1600Kg
    Recommended excavator capacity≥15ton≥23ton≥36ton



    FAQ

    1: What is the Warranty of the Rotary Drilling Rig?

    The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
    Please contact with us for detailed Warranty Regulation.


    2: What's your service ?

    We can offer professional technical support and good after-sale service to you.
    Modification methods will be different according to different models and configurations of your owned excavators.
    Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
    Before modifying, you need to confirm technical specification.


    3: What can you buy from us?
    Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm


    4: Why should you buy from us not from other suppliers?
    APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
