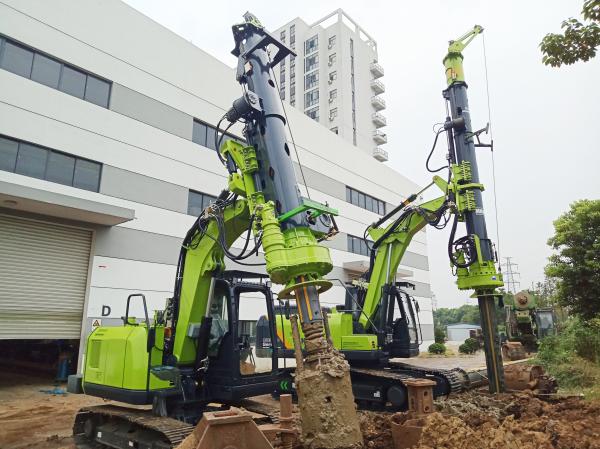

Excavator Hydraulic Rock Mounted Drill Attachment for Narrow Space
Construction
Product Feature
1. Enhanced Compatibility: Our hydraulic rock mounted drill
attachment is designed to be compatible with excavators exceeding
30T without the need to replace the main boom. By utilizing the
main boom cylinder and forearm cylinder of the original excavator,
there is no requirement for additional auxiliary counterweight.
This approach avoids overloading the hydraulic components, reducing
the risk of high failure rates. During construction, we recommend
selecting the low-gear mode to ensure optimal performance.
2. Transformation into a Small Rotary Drilling Rig: Our attachment
allows for the modification of an excavator, effectively
transforming it into a compact rotary drilling rig. This
versatility enhances the excavator's capabilities, enabling it to
tackle a wider range of drilling tasks.
3. Improved Profit Model: By converting the excavator into a rotary
drilling rig, our attachment offers an enhanced profit model. The
added functionality expands the excavator's utility, opening up new
opportunities for revenue generation.
4. Reversible Conversion: Our attachment allows for efficient
restoration of the excavator back to its original configuration
when needed. This flexibility ensures that the excavator can be
utilized for various construction applications without limitation.
5. Perfect for Narrow Space Construction: The hydraulic rock
mounted drill attachment excels in narrow space construction
projects. Its compact design allows for operation in tight spaces,
enhancing productivity and efficiency.
6. Close Proximity Operation: The attachment enables the excavator
to be operated very close to walls or other structures, providing
greater precision and control during drilling operations.
7. Convenient Single Load Transportation: Our attachment is
designed for easy transportation, allowing for convenient
single-load transportation of the excavator and attachment to
different job sites.
Experience enhanced versatility and efficiency in narrow space
construction with our Excavator Hydraulic Rock Mounted Drill
Attachment. Its compatibility, transformation capabilities,
improved profit model, and convenient features make it an
invaluable tool for a wide range of construction applications.
| Performance Parameter | Unit | Value |
| Max. torque | kN.m | 50 |
| Max. drilling diameter | mm | 1200 |
| Max. drilling depth | m | 16/20/24 |
| Working speed | rpm | 7~30 |
| Max. cylinder pressure | kN | 75 |
| Max. hoist capacity | kN | 90 |
| Main winch pull force | kN | 65 |
| Main winch speed | m/min | 48 |
| Auxiliary winch pull force | kN | 20 |
| Auxiliary winch speed | m/min | 38 |
| Max. cylinder stroke | mm | 1100 |
| Mast side raking | ° | ±6 |
| Mast raking forward | ° | +90~-30 |
| System pressure | mpa | 34.3 |
| Pilot pressure | mpa | 3.9 |
| Max. walking speed | km/h | 5.6 |
| Max. pull force | kN | 220 |
| Operating height | mm | 10740 |
| Operating width | mm | 2800 |
| Transport height | mm | 3040 |
| Transport width | mm | 2800 |
| Transport length | mm | 12850 |
| Total weight | t | 25 |
Product Details
FAQ
1: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
3: What's your service ?
We can offer professional technical support and good after-sale
service to you.
Modification methods will be different according to different
models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and
hydraulic joints and others.
Before modifying, you need to confirm technical specification.
