Tungsten Carbide Drill Bucket 8.5 Inch Single Roller Cone Bit For Core Barrel

Ask Lasest Price
Brand Name :	APIE
Model Number :	KE1-2
Certification :	CE and ISO9001
Price :	$2000+
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	300 Unit/Units per Month
Delivery Time :	3-5 days after payment

Add to Cart

Product Details
Company Profile

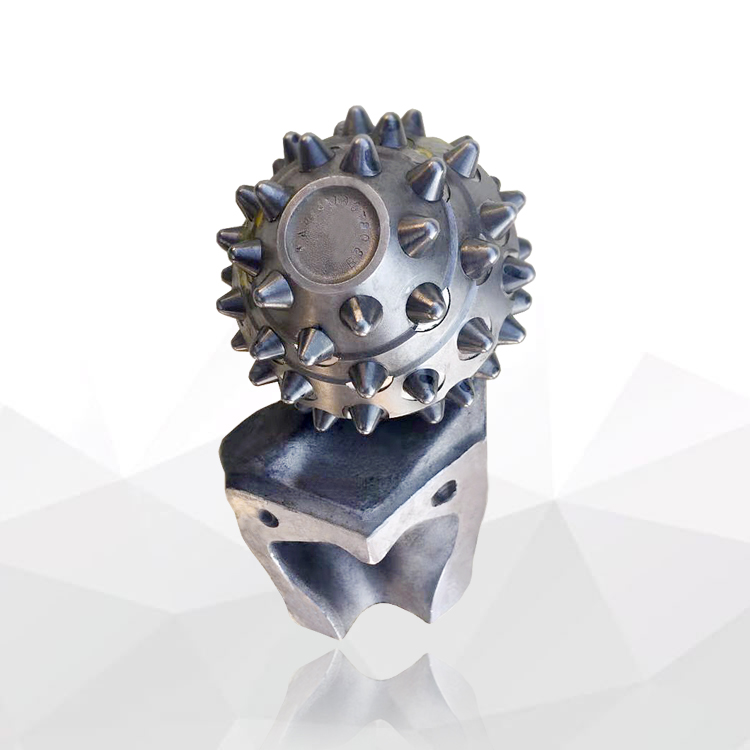

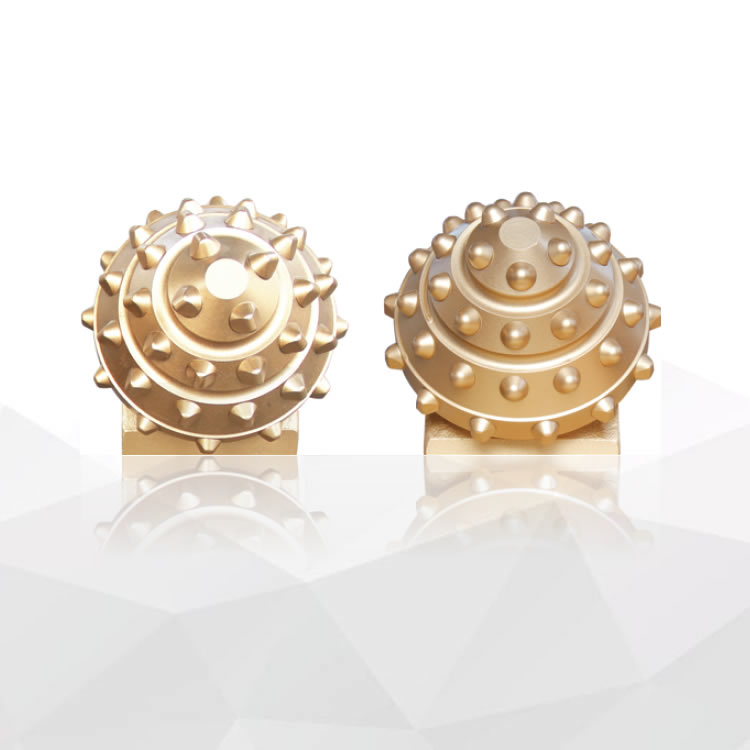

Tungsten Carbide Drill Bucket 8.5 Inch Single Roller Cone Bit For Core Barrel

drill bucket Tungsten Carbide 8.5 inch single roller cone bit for core barrel

Product Feature:

1.The reaming bit consists mainly of four or more cones. The main cutting teeth are new wear-resistant alloys for tungsten carbide inserts and steel teeth. The new formula and the new process of high-quality tungsten carbide teeth improve the service life of the reaming drill. The guide is a cone drill bit or a scraper drill bit.

2.The bearing seal uses high-performance O-ring seal or metal seal bearing and special grease for imported drill bit.

3.Special inserts are placed on the outer diameter of the head to reduce the wear of the head during the formation of abrasives in directional and horizontal wells, prolonging the life of the drill.

4.Replacing Cutters and Cutting Cost-On most Hole Opener designs, the cutters can be easily replaced. The cost to replace a cutter is a fraction of the cost to replace a large tricone rock bit.

Product Descriptions:

Core Barrel with roller bits is used in very strong rock formations(compressive strength >100Mpa).

Technical Specification of Roller Cone Drill Bit
Place of 0rigin	Jiangsu, China
Material	42CrMo
Application	Rotary Drill Rig
Body	Alloy steel
Machine type	Foundation Construction Rotary Drilling Rig
Type	Drilling tool
Roller bit DIA.	135mm
Bearing Type	Slipper seal
Alloy DIA.	13mm
Bear Type	Rubber sealed journal bearings
Make up Torque(KN.m)	16.3~21.7
Processing Type	Casting
Rotary Speed(rpm)	70~40
Weight on Bit(Kg)	1.2~1.5
Formation	Hard with high abrasiveness such as hard limestone,dolomite,firm sands,etc

Product Details

FAQ

1: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment

2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm, drilling tools

3: What's your service ?

We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
