    Construction Machinery Accessories Drilling Rig Tool Core Barrel With Double Shell

    Ask Lasest Price
    Brand Name : APIE
    Model Number : Core barrel with double shell
    Certification : CE and ISO9001
    Price : US$ 700-2000 Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 15 sets/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

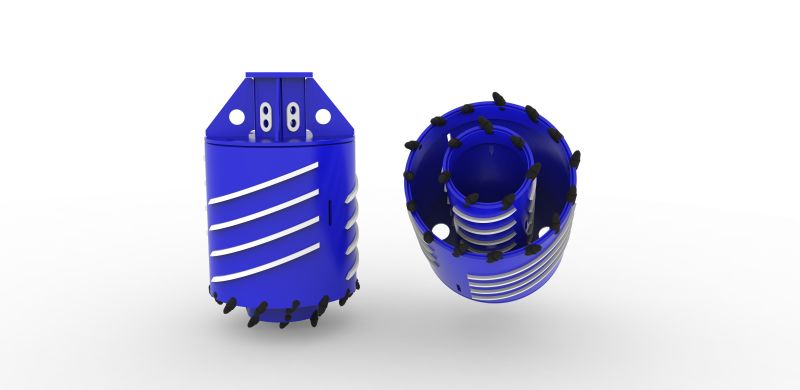

    Construction Machinery Accessories Drilling Rig Tool Core Barrel With Double Shell

    pipe drilling tools Double Shell Core Barrel Of Construction Machinery rock tools


    Product Feature:

    1.The inner shell starts drilling first, the outer shell follows.
    2.The cutting rings are attached with 21-70 rock drilling bits, this design releases the internal stress of rock.
    3.These rock drilling bits perform stage breaking and foundation drilling.
    4.The small inner core barrel facilitates the coring operation, the large outer barrel performs stage breaking.
    Product Descriptions:
    1.Core barrels are used to cut an annular ring in rock or concrete or reinforced concrete.
    2.The center core of the rock or concrete is usually crushed with rock auger. The most important advantage of a core barrel is that it assists to concentrate the torque and crowd force on a small ring of cutting teeth.

    Technical Specification of Core Barrel with Roller Bit
    drilling Dia.Outer Shell HIT.Inner Shell HIT.Shell ThicknessTeeth.No.Weight
    (mm)(mm)(mm)(mm)(number)(kg)
    10001200140016171115
    12001200140016201323
    15001200140016241775
    16001200140016271926
    18001000120020292361
    2000800100020332690
    2200800100020362969
    2500800100020423318
    2800800100020463997
    3000800100020494630


    Product Details


    FAQ

    1: How can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment


    2: What can you buy from us?
    Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm, drilling tools


    3: What's your service ?

    We can offer professional technical support and good after-sale service to you.
    Modification methods will be different according to different models and configurations of your owned excavators.
    Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
    Before modifying, you need to confirm technical specification.
